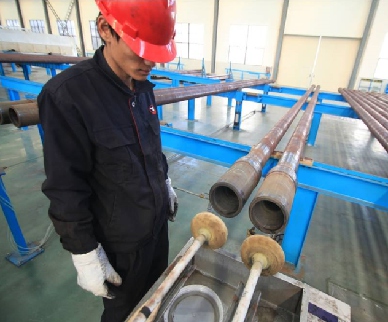

Internal Coating THC180
Coating Type: Modified Epoxy-Phenolic (Base Fluid +Powder)
Coating Color: GreenFilm
Thickness: 150-350 (μm)
Service Temperature: ＜180°C

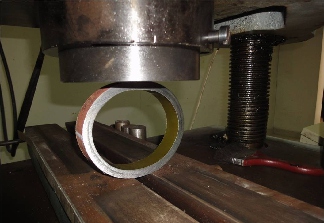

Pressure Resistance: Meets the yield limit of the pipep
H Resistance Range: 3-13
Adhesion (Cross-Cut Method): Grade A
Adhesion (Pull-Off Method): ≥30M
PaImpact Resistance Test (Rebound): 9A
Pencil Hardness: ≥3H
Roughness: ≤0.5μm
Abrasion Resistance (Taber, 1000g, 1000rpm, CS-17) (mg): ≤30
Acid Resistance:1.Soaked in 15% HCl + 3% HF at 66°C for 18h, no change in the coating.
2.Soaked in 12% HCl + 3% HF at 93°C for 8h, no change in the coating.
3.Soaked in 28% HCl at 66°C for 8h, no change in the coating.

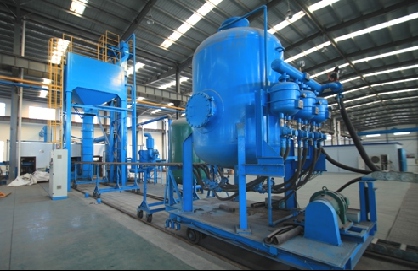

High-Pressure High-Temperature (HPHT) Autoclave Test:
(1)When the test conditions were a liquid phase of 5% NaCl solution with a pH of 12.5(adjusted using NaOH), a temperature of 148°C, a pressure of 70MPa applied via N , and a duration of 24h, 2the coating exhibited no blistering or softening, and the adhesion remained unchanged.(2)When the liquid phase composition was water, xylene, and kerosene (volume ratio 1:1:1), the gas phasecomposition was 100% CO , and the test was conducted at 107°C under 35MPa for 16h, the coating showed 2no blistering or softening, and the adhesion remained unchanged.
